Lintlihvmasin

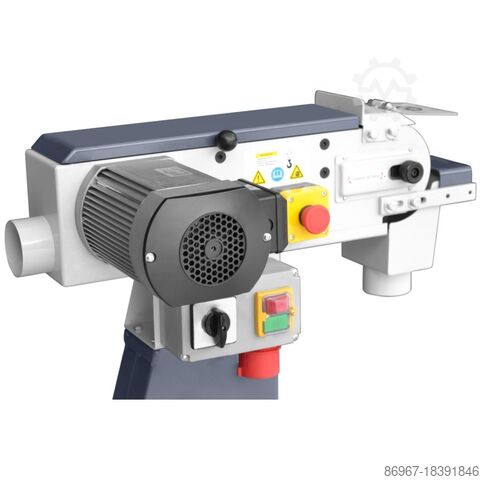

CORMAK SM100

The CORMAK SM100 belt grinder is a professional stationary grinding machine designed for efficient and precise deburring, edge grinding, and machining of flat and profiled surfaces. Thanks to its two-speed drive system, robust construction, and ergonomic design, this metal belt grinder is an excellent solution for production plants, tool rooms, and metalworking workshops, ensuring repeatable results and long service life of abrasive materials.

Main advantages of the machine
Two-speed abrasive belt operation – belt speeds of 9.5 m/s and 19 m/s allow adjustment of parameters according to the material and type of operation (roughing/finishing).
Powerful and reliable 1.5 kW motor – ensures smooth operation even under heavy load.
Belt grinder with base – a stable construction provides comfortable and safe operation without transferring excessive vibrations to the operator.
Precisely balanced rollers – eliminate vibrations, ensuring smooth belt movement and high-quality surface finishing.
Quick belt replacement system – enables fast abrasive belt changes without the need for tools.
Adjustable stops and guides – improve machining accuracy and allow adjustment to specific applications.
Dust extraction port – enables connection to an extraction system, reducing airborne particles in the workplace.
Undervoltage release safety switch (IP54) – provides protection in case of power failure.
Design and technology

The CORMAK SM100 metal belt grinder has been designed for maximum durability and safe operation. The body is made of thick-walled steel components, minimizing resonance and ensuring high structural rigidity.

The open and easily accessible working area, combined with a large grinding surface, allows processing of workpieces with various dimensions. The compact base requires little space while providing stable support for the entire unit.

Precision and working efficiency

Thanks to the optimized two-speed transmission and high machine weight (44 kg), the CORMAK SM100 stationary belt grinder operates smoothly and with minimal vibration, even under significant pressure from the operator.
Ibjdpfxovvk Hhs Ab Esa

The ability to select the grinding speed provides direct control over surface finish quality and the speed of material removal.

Applications

The machine is ideal for:

steel structure processing,
tool rooms and metalworking workshops,
single-piece and small-batch production,
finishing operations and surface preparation before painting,
grinding welds, edges, flat surfaces, and profiled components.
Standard equipment
Belt grinder with two-speed transmission
Stationary base
Dust extraction port for connection to an extraction system
Safety switch with undervoltage protection (IP54)
Guide and drive rollers
Technical specifications
Parameter Value
Power supply 400 V / 50 Hz
Abrasive belt dimensions (L × W) 1220 × 100 mm
Belt speeds 9.5 / 19 m/s
Motor power 1.5 kW
Weight 44 kg
Overall dimensions (L × W × H) 720 × 400 × 990 mm
Base dimensions 430 × 380 mm
Height to support table 870 mm
