WEILER Praktikant VC Plus

turning length 650 mm
turning diameter 320 mm
centre height 160 mm
turning dia. over face-slide 190 mm
quill: 3 MK
spindle bore 42 mm
turning speeds 25-5000 U/min
centre distance 650 mm
Number of working hours 637 h
total power requirement 8 kW
weight of the machine ca. 1250 kg
dimensions of the machine ca. 1,6 x 0,5 x 1,7 m

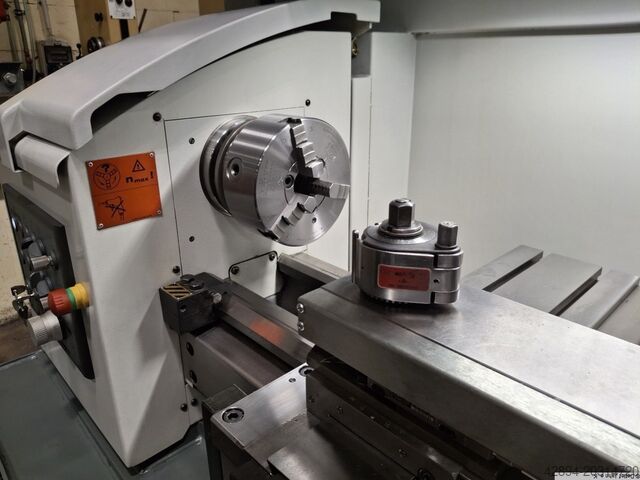

Weiler Praktikant VC Plus lathe, built in 2014,
from a test workshop, in excellent condition!

Features:
All 99 storable tools can be programmed separately with feed rate and speed or
constant cutting speed. Separate control of speed and feed rate via
potentiometer is also possible.
Thread pitches are freely programmable and feature electronic limit switches.
Additional
electronic stops can be set for lengths and diameters.
A coolant device is not available.
8" colour screen
Energy recovery

Accessories:
The machine includes a quick-clamping device with 30 collets 5 to Dmr 26 mm,
3-jaw chuck made by Röhm including 10 sets of soft jaws,centring tips,
tailstock mounts (MK 3) for thread cutting with threaded drills and dies
by hand,
15 Multifix holders size A,
turning head for Multifix holder for producing bolt circles,spindle and bed
stop,

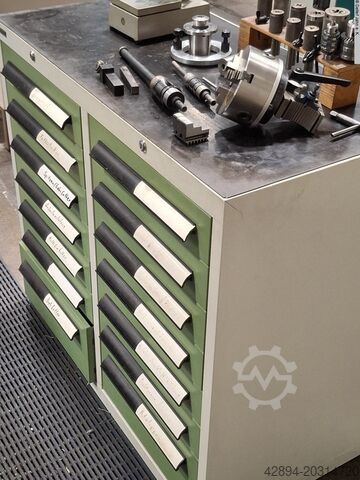

tool cabinet with 12 drawers,
WP holder for internal and external machining, drills, reamers,
standard thread gauges up to M10,
comprehensive documentation on operation and maintenance.
