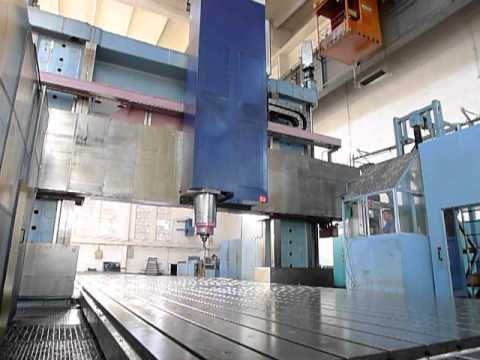

5-teljeline portaal WALDRICH SIEGEN PF-F150

WaldrichSiegen PF-F 150 530/400

Make : Waldrich - Siegen
- Typ : PF-F-150(1)-530/400
- No. : 11.093/0
- Age : Overhault 2004 ( Euro 2.2 Mil)
X Travel : 12.000
- Y Travel : 7.300
- Z Travel : 3.000
- W Travel : 4.000
- Between column : 5.000
- Table width : 4.730
- Table length : 12.000
- Table load : 19 t / mtr. Ca. 250 ton
- Table feed : 10.000 mm/min.
- W axis : 3.000 mm/min.
- T axis : 6.000 mm/min.
- Cross adj. milling head :
- Vert. adj. cross rail :
- Horizontal hydrostatic spindle ram
- Milling spindle Ø : 560
- Milling tool taper : iso 60
- C axis feed : 5.000 mm/min.
- Milling motor : 90 kW
- Spindle speed : 2.500 R/pm
- Z axis stroke : 3.000
- Z axis feed : 2.000 mm/min.

- Milling Küma Angle head WF2 90 kw- 450
- Milling Küma Uni. UB1D 60 kw - 2400
- Milling Küma Fixed GB1D 90 kw- 2400
- Milling Küma Angle head WF1?
- Electric requirement : 3 x 400 V / 50 Hz
- Power requirement : 600 kVA / 630 Amp
- Capacity 4.000 L coolant true spindle 20/40 Bar
Machine is rebuild in 2004 by Schiess
Bed – Table assembly group:
* Renewal of sliding lining
* Grinding of guideway
* Renewal of table drive
* Direct linear measuring syst.
* Hydrostatic
Portal and cross rail:
* Modification of adjusting spindle trape
Zoidal spindle was recplaced with ball screw
* Direct linear measuring syst.
* New drive motors for relization of higer
speed on feed axes of milling support.
* New milling support with hydrostatic guideways
Electric system:
Godpfxeytrxko Ac Ejbw
* Complet elctric cabinet switchgear
* Complet new wire
* Siemens Sinumrik 840 D in 6 axis !!
Equipment / parts :
* Complet new raumag janich covers
* Complet new double chip conveyor
* Complet with big tooling packet
* Complet with big mounting equipment
- Under power in Europe
- Free directly
- Controlled axis X / Y / Z / W / C / B axis
- Over all height : 10.475 mm
- Over all width : 11.934 mm
- Over all length : 30.000 mm
- Total weight : ca. 400.000 Kg

Rebuild in 2004 for EUR 2.200.000 !This CNC Waldrich Portal milling machines was used in the Energie Field for steam turbien case machining.
