Automaatne stantsimispink

SCHAAL SEP 80 SZV 302

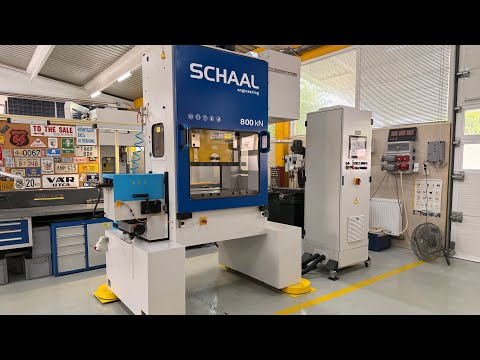

The Schaal SEP 80 is a 80-ton eccentric press designed for precision stamping and forming. Its Unidor electronic control system ensures repeatable stroke accuracy and fast setup, while the integrated tool safety device protects dies from damage caused by misfeeds or incorrect part positioning — reducing downtime and tooling costs. The machine features a rigid double-column O-frame in vibration-damping cast iron, 6-point play-free roller ram guidance, and a flywheel drive with pneumatic clutch/brake combination. It comes equipped with a gripper feeding device SZV 302 feed unit for automated strip feeding.
Pressing force: 800 kN (80 tons)
Strokes per minute: 60 – 320 min⁻¹
Ram stroke (adjustable): 8 – 80 mm
Iiedpfezhw Hujx Ab Tof
Ram adjustment: 80 mm
Ram surface: 700 × 500 mm
Table size (clamping plate): 830 × 700 mm
Clamping plate thickness: 80 mm
Table opening: 500 × 200 mm
Strip feed clearance: 120 ± 40 mm
Feed unit: Schaal SZV 3
Strip width: 10 - 270 mm
Thickness: 0 – 4 mm
Drive power: 21.5 kW
Weight: 8,000 kg
Footprint: 1,500 × 2,000 mm, height: 2,885 mm
