MBF Synchrofill LV atmosfääriline täitmismasin (2001)

MBF Atmosphärischer Füller

Overview

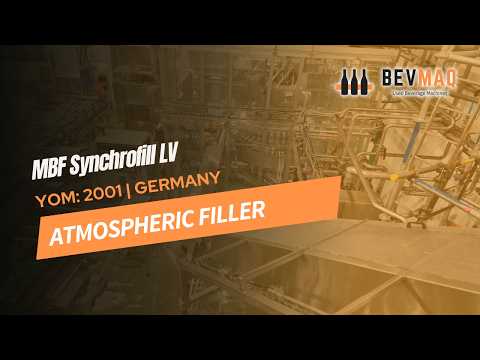

This filling monoblock was manufactured by MBF in 2001 and is designed for the filling of hot fruit juice (up to 95°C). The Synchrofil LV operates with an atmospheric (gravity) filling system and includes an integrated capping unit for aluminum screw caps (MCA standard). The machine is equipped with 35 filling valves and 4 rolling capping heads. It is adjusted for 1.0 L and 0.5 L VdF glass bottles with a diameter of 89.5 mm. The machine runs clockwise l-r and reaches a capacity of up to 7,000 bottles per hour. It is equipped with automatic speed control, CIP tank for automatic cleaning, and closure control systems.

Technical Data

- manufacturer: MBF
- model: Synchrofil LV 1200-35 / 240-4V
- year of manufacture: 2001
Itsdpfoyh Iraox Af Tjn
- condition: used
- filling system: atmospheric (gravity)
- filling temperature: up to 95°C
- number of filling valves: 35
- number of capping heads: 4 (rolling heads)
- closure type: MCA aluminum screw cap
- closure size: 28 x 15 mm
- formats: 1.0 L VdF 0.5 L VdF
- bottle diameter: 89.5 mm
- production capacity: 7,000 bph
- direction of rotation: clockwise, l-r
- automatic speed regulation
- CIP tank for automatic cleaning
- closure control: cap feed control cap presence/closure control
- safety protections
- machine dimensions: width: 3.40 m height: 2.60 m depth: 2.30 m
