Lihvimismasin

MB Fentech ORBITAL Zwischenschlif

Number of sanding units 10 St.
sanding width 25-240 mm
Sanding height max. 15-140 mm

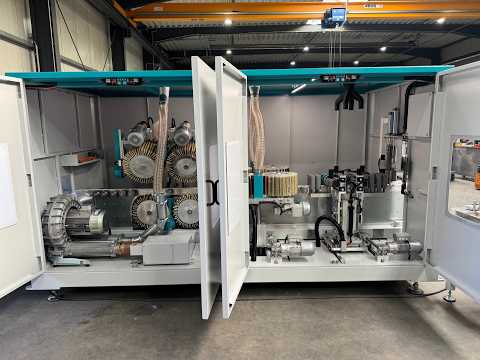

MB ROBA Fentech ORBITAL, fully automatic sanding machine

Designed for sanding individual wooden components in window manufacturing, it is suitable for the following applications:

- Fine wood sanding
- Impregnation sanding
- Intermediate lacquer sanding

Advantages of the ROBA Fentech principle:
- Automatic workpiece detection via scanner at the machine infeed
- Motorized positioning of sanding units
- Oscillating side units optimize abrasive utilization
- 400 mm sanding tool diameter optimizes sanding quality
- Angled profiles are sanded at their optimal angle
- Can be used as a through-feed machine or in reversing mode for one-person operation
- Vacuum transport system for processing short parts
- Enclosed design for enhanced workplace safety and a dust-free environment
- Compact, space-saving design
- Freely selectable abrasive configuration from the MB Flex System. Brief overview of technical details (detailed description available upon request!):

Workpiece length: max. unlimited, min. approx. 250 mm
Workpiece width: 25–240 mm
Workpiece height: 15–140 mm

- Automatic, scanner-based workpiece detection at machine infeed
- 2.0 m infeed table
- Driven vacuum transport system
- 1x Twin orbital sanding unit for right-side processing
- 1x Twin orbital sanding unit for left-side processing
- 1x Twin-spindle unit for right-side processing
- 1x Twin-spindle unit for left-side processing
- 1x Twin-spindle unit for processing from below
- 1x Twin-spindle tilting unit for processing from above
- 2.0 m outfeed table
- Initial set of abrasives
- Roba Fentech HMI (9" display, 400x400 housing, Siemens HMI)
- Siemens control system
- Electrical components: Klöckner Möller
- Geared motor: Getriebebau Nord
- Frequency converter: Schneider Electric
- CE mark

-----
Podpfxozqvnpo Ah Hopw
Ex-works price upon request!
Plus freight and commissioning


(Technical specifications provided by the manufacturer – subject to change/without guarantee!)
