Hüdrauliline kahesambaline press

Intemach Press IHS 400

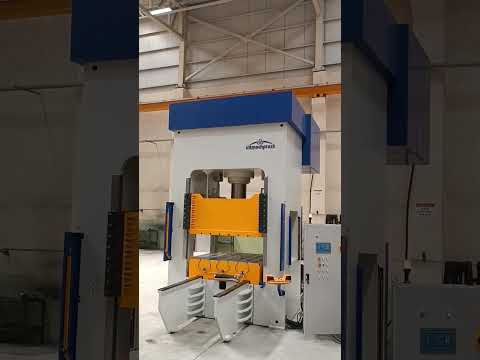

Hydraulic H Frame Press with movable Plate

Capacity: 400 Ton
Controll : by 2 Hand Bottom
Main Cylinder : Ø 430mm.
Auxilitary Cylinder : 2 pcs. Ø 110 x 55mm.

Main Motor : 37kw. - 75hp. ( IE-3 )
Pumpe : 140cc. - 204LT BOSCH/REXROTH
Speed: Down-140mm/sec. Working Speed13 - 5mm/sec Upspeed:150mm/sec

Daylight : 1000mm
Stroke: 700mm

Movable Plate: 1500x1000mm
Upper Plate : 1500x1000

Hydraulic:
All the Hydraulic System will be top of the Machine
Hydraulic System : BOSCH/REXROH
Pressure & Speed Adjustment
Side Cover doors
Hydraulic Top Plate Lock system
Mechanic Top Plate Lock System
Automatic Lubrication System
Oli Capacity : 1100 Lt

Controller:

Controller: SIEMENS S/7-1200
Electric Cabinet ( CE)
Portable Control Panel
Remote Connection System
Security PLC
Soft Starter
Light Curtains on Front & Back Side
Movable 2 Hand Control
PLC Touch Screen: SIEMENS 12''
Working Area Ilimination
8 pcs free IN & OUT put-on PLC

Movable Table:
Iodpspl Ugzefx Abksbf
Stroke of the Movable Plate:1200mm
Hydraulic Movement with external Motor and Pump
Support Sliding System
Table Paralelity: 0,05mm/ per m²

All the Capacity,Dimentions and Options can be offered according to Customer Requirements

Pls Contact us more Informations.
