Good condition / year of manufacture 2001

Brandt KD 68 CF Optimat

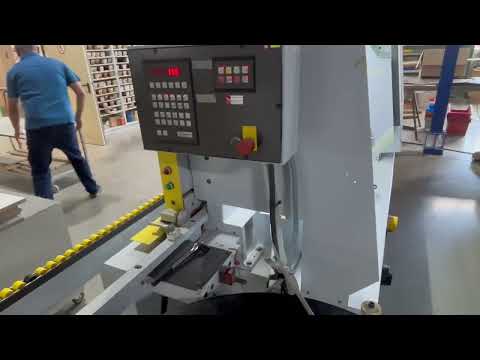

Used BRANDT KD 68 CF Optimat edge banding machine from 2001.

The machine is equipped with several processing units for complete edge processing. Among other things, it features pre-milling units, trimming units, radius milling cutters, corner copying devices, and pull knives for radius and surface finishing.

Technical data / Equipment

Manufacturer: BRANDT
Type: KD 68 CF Optimat
Year of manufacture: 2001
Machine no.: 0-261-02-8154
Control system: BRANDT NC 9
Feed speed: approx. 11 m/min
Edge thickness: up to approx. 40 mm
Voltage: 400 V
Frequency: 50 Hz
Control voltage: 24 V
Bwsdpezxy Nyofx Ahvsw

Equipment:

BRANDT NC 9 control system
Pre-milling
Trimming units
Radius milling
Corner copying
Pull knives for radius processing
Surface pull knife
pneumatically controlled units
Roller magazine / edge feeder
Workpiece transport via feed chain
Dust extraction connections on the processing units
Central control via control panel
Emergency stop

The machine is currently still at the customer's site but would be immediately available!

Transport is possible for an extra charge!

The machine will be inspected before sale. For used machines with a year of manufacture of 2009 or earlier, the warranty is excluded when sold to commercial customers.
Technical data and equipment may vary. Errors, prior sales and changes are subject to change. All information without guarantee.
