Töötlemiskeskus

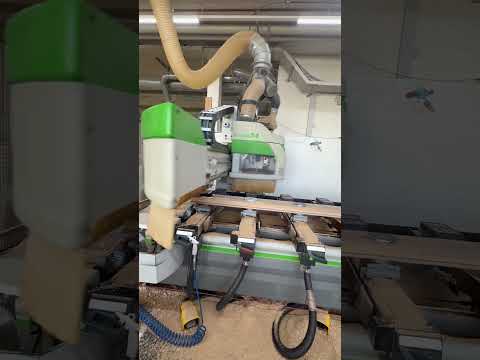

BIESSE Rover 24 XL

Travel Paths:
• X-axis: 6170 mm
• Y-axis: 1395 mm
• Z-axis: 180 mm

Machine Structure:
• Gantry design with moving machining unit
• 10 consoles (ATS) with adjustable vacuum pods
• 30 movable support elements
• Multi-zone vacuum system (4 working areas along the X-axis)

Installation Dimensions:
• Machine length: approx. 8850 mm
• Machine width: approx. 4020 mm
• Working length: approx. 7300 mm

Clamping and Vacuum System:
• 2 vacuum pumps each with 90 m³/h capacity
• Vacuum modules in various sizes (360° rotatable)
• Pneumatic clamping systems:
• Front stops
• Side stops (left/right)
• Central stops
• Uniclamp clamping units for workpiece thicknesses 40–98 mm
• Sensors for recognising lowered stops

Machining Units
Main Spindle:
• Power: 7.5 kW to 12 kW
• Speed: up to 24,000 rpm
• Tool holder: HSK F63
Iodjyvz Emopfx Aa Sotd

Drilling Head:
• Vertical spindles:
• 10 along X-axis
• 10 along Y-axis
• Horizontal spindles:
• 6 along X
• 2 along Y

Additional Parameters:
• Max. drilling diameter: 35 mm
• Usable length: 45 mm
• Max. projection: 60 mm

Tool Change System

Turret Tool Changer:
• Capacity: 18 tools
• Holder: ISO30 / HSK F63
• Max. tool diameter: 200 mm
• Max. tool length: 160 mm

Additional:
• Pick-up changer with 2 positions
• Provision for aggregates (e.g., saw units up to Ø 270 mm)

Electrical:
• Connection: 400 V / 50 Hz / 3 phase
• Power: 22 kW

Compressed Air:
• Connection: 3/8"
• Working pressure: 6 bar
• Consumption: approx. 400 NL/min

Extraction:
• Connection diameter: 250 mm
• Air flow requirement: 5300 m³/h
• Air velocity: 30 m/s
• Pressure loss: 1500 Pa

Mechanical Data
• Machine weight: approx. 4750 kg

Additional Equipment
• Automatic central lubrication
• Chip conveyor
• Air blast device for spindle
• Pneumatic pre-installation system
• Safety equipment according to Directive 98/37/EC
• CNC control (Biesse system)
