Mehaaniline giljotiin, giljotiinkäärid

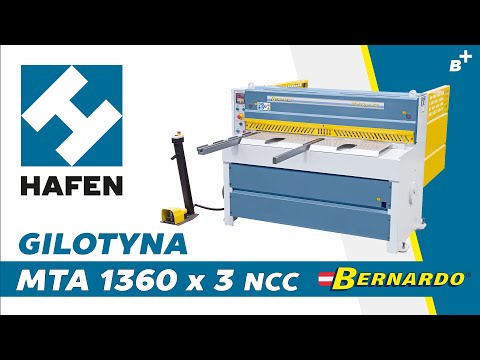

Bernardo MTA 1360 x 3 NCC

Standard equipment includes a sheet clamping device, making it optimal for thin sheets.
Support arms at the front facilitate the handling of large panels.
The electrically driven rear gauge ensures precise movement with rolling ball screws.
Fjdjyt Ia Rjpfx Ackogh
A clearly laid-out control panel with integrated control system.
Robust steel sheet construction ensures vibration-free operation.
Support table with rectangular stops on both sides.
High operator safety due to protective guard and rear-mounted light barriers.
Double-edged knives made from high-quality steel guarantee clean and burr-free cuts.
The automatically operating hold-down device ensures secure sheet clamping.

Technical specifications:
Cutting length: 1360 mm
Maximum sheet thickness (mild steel): 3 mm
Cutting angle: 2° 30‘
Strokes per minute: 31
Working height: 810 mm
Rear gauge: 0–750 mm
Table width: 390 mm
Motor power: 3 kW
Voltage: 400 V
Dimensions (W x D x H): 1930 x 2100 x 1260 mm
Weight approx.: 1240 kg

Kuulutus tõlgiti automaatselt. Tõlkevigu võib esineda.
