Formaatsaag Classic 3200 C

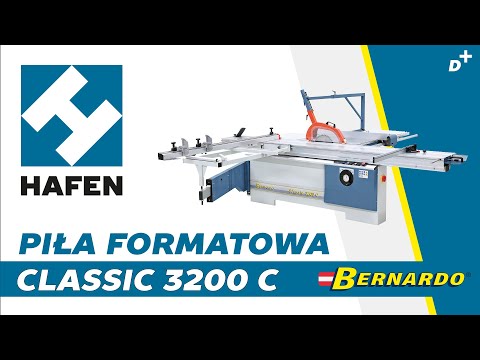

Bernardo Classic 3200 C

Rod guideways – a solution previously found only in top-tier machines, now available as standard
Slide table made of aluminum equipped with hardened guideways ensures smooth and precise movement
Table extension and widening as standard – ideal for supporting large sheet formats
Robust support table enables processing of heavy and large panels without the need for additional support
Powerful drive motor guarantees maximum cutting performance, even during intensive continuous operation
Easy angle reading set directly on the handwheel – comfort and precision in adjustment
Scoring unit with independent motor included as standard
Extendable telescopic stop (up to 3100 mm), mountable at the front or rear of the support table – flexibility and convenient handling
Stable saw unit ensures precise, clean cuts without vibration
Machine body with reinforced, stable design made of steel and grey cast iron combination – ensures durability, rigidity, and precise operation even under heavy load.
Parallel fence with a robust, round 40 mm guideway – the tilting option makes material loading easier
Workspace – minimum required floor area is 5 × 6 m

Technical specifications
Table size – length: 935 mm
Table size – width: 620 mm
Sliding table length – panel/roller: 3200 mm
Sliding table width – panel/roller: 370 mm
Sliding table, carriage type: Panel
Edge trimming length / table movement: 3200 mm
Blade size: 315 x 30 mm
Max. cutting height 90°: 90 mm
Max. cutting height 45°: 65 mm
Cutting width with guide: 1295 mm
Working height: 850 mm
Table extension: 600 x 615 mm
Table widening: 900 x 600 mm
Extension table: 1210 x 860 mm
Main saw rotation speed: 4000 / 6000 rpm
Dsdoyt I Arspfx Ackswc
Scoring saw rotation speed: 8000 rpm
Scoring saw size: 120 x 20 mm
Extraction port Ø: 100 mm
Motor power: 5.5 kW
Motor power S1 100%: 4 kW
Scoring unit motor power: 0.75 kW
Voltage: 400 V
Dimensions – width: 3445 mm
Dimensions – depth: 3560 mm
Dimensions – height: 1570 mm
Weight approx.: 710 kg
