Frees-treimiskeskus

AXA VPC 55 UT

Milling, Turning, 5-Axis Simultaneous Machining

Siemens 840D sl

General
X travel: 2300 mm
Y travel: 1600 mm
Z travel: 900 mm

Swivel Head
Type:

1-axis continuously adjustable swivel head or full interpolation
Swivel movement: via B-axis
B-axis swivel range: 0° to -90°
Indexing: 0.001°
Swivel radius (pivot point to spindle nose): 290 mm

Machine Table

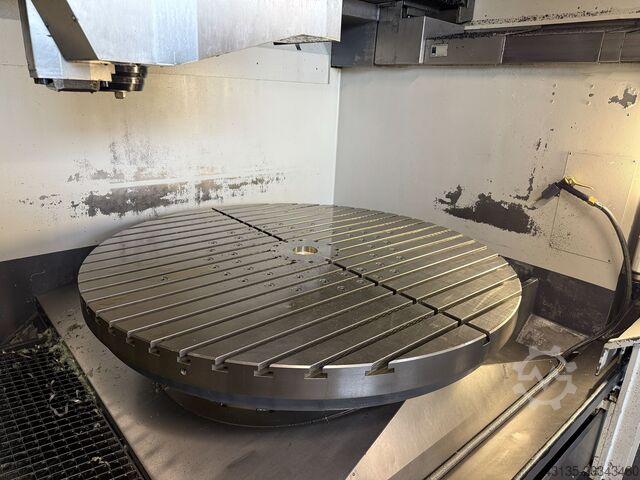

Clamping surface rotary table: Diameter 1600 mm
NC Rotary Table: AXA RTA 6D, faceplate 1600 mm
T-slots: 18 mm H9, reference slot H7
Dodpfx Aexp Izfeg Ejla
T-slot layout: radial/star-shaped
T-slot spacing: 80 mm
Table load – positioning mode: Max. 5000 kg at max. 10 rpm
Table load – rotary mode: Up to 2500 kg
Rotary speed: Up to max. 250 rpm
Measuring system: Direct measuring system, accuracy +/- 1 second

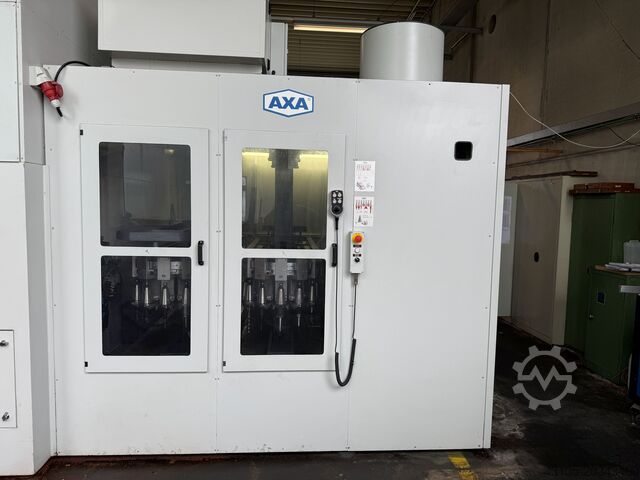

Tool Changer (SK50)
Type: Side-mounted chain magazine, located outside the working area
Tool holder: SK 50, DIN ISO 7388-1 AD / DIN ISO 7388-3 AD
Tool stations: 60 (Tower 1 / 1st chain = 30 places, Tower 2 / 1st chain = 30 places)
Max. tool diameter (standard): Max. 110 mm
Tool diameter with adjacent stations free: Max. 180 mm
Tool length: Max. 400 mm
Tool weight: Max. 15 kg per tool
Weight in gripper: Max. 15 kg

Tool Changer (CAPTO C6)
Type: Second magazine chain in XTS turret for turning tools
Tool holder: CAPTO C6
Tool stations: Tower 1 / 2nd chain = 12 places
Max. tool diameter (standard): Max. 85 mm
Tool diameter with adjacent stations free: Max. 135 mm
Tool length: Max. 400 mm
Tool weight: Max. 8 kg per tool

Spindle & Drives
Feed force X/Y/Z: Max. 9000 N
Rapid traverse X/Y/Z: 30/30/25 m/min
Feed rate X/Y/Z: Standard 1 - 9999 mm/min

Power: Max. 56 kW at 40% duty cycle
Torque: Max. 355 Nm at 40% duty cycle
Speed range: Up to max. 9000 rpm
Critical speed: 1500 rpm

Other features:

Two hinged belt chip conveyors, rear discharge. Discharge height approx. 1250 mm.
Internal coolant supply through the spindle. Suitable for coolant pressure up to 30 bar.
Complete machine enclosure with powered doors

Further details available upon request

The technical specifications were prepared to the best of our knowledge. No liability is assumed for correctness. We recommend inspecting the machine. Please call to schedule an appointment.
